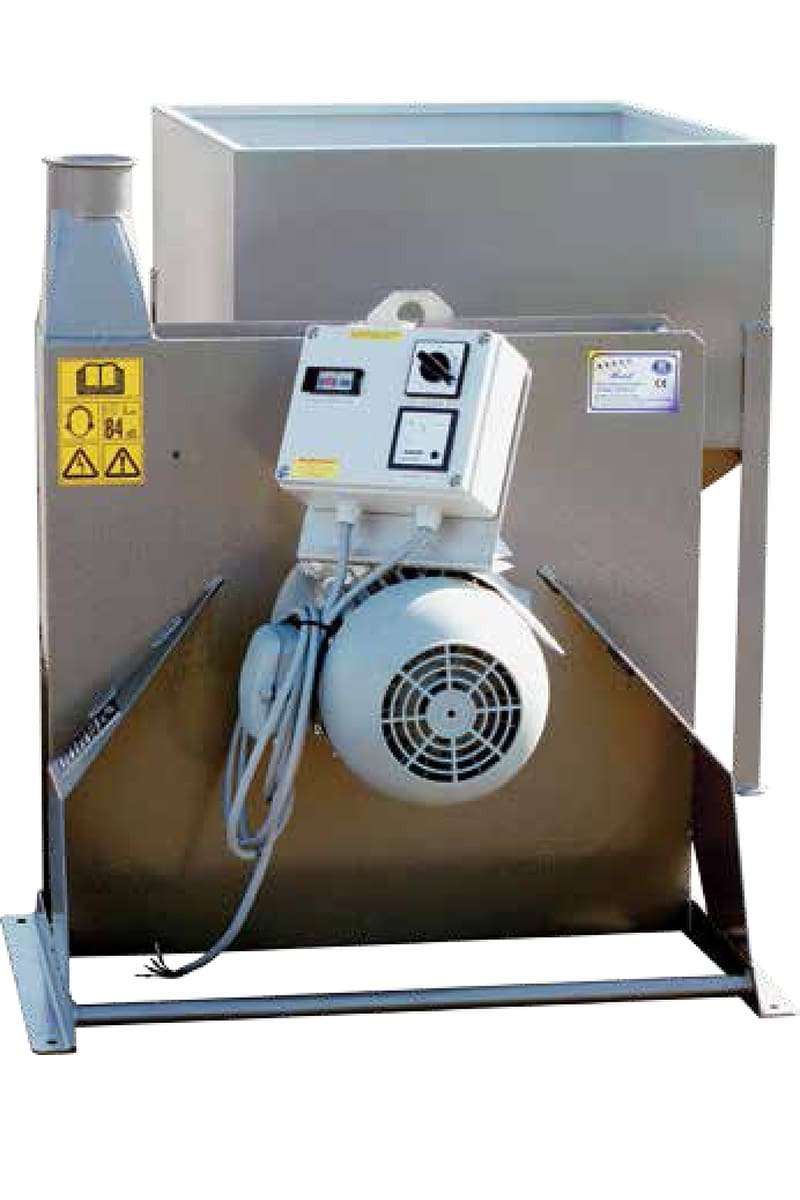

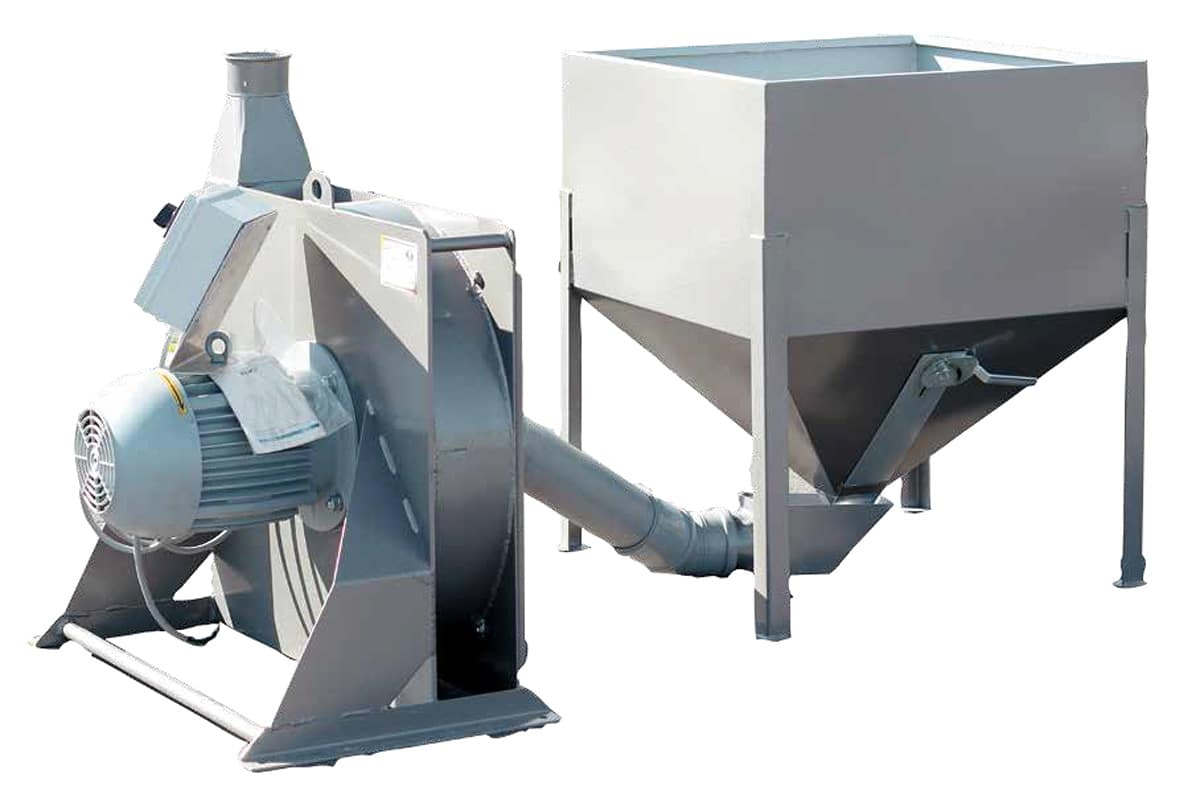

The hammer mill (corn crusher machine) is suitable for grinding grain crops and pelleted products, that are sufficiently dry and firm. This kind of materials can further be used to feed animals or in other production processes. The advantage of the mill is that the grinding mass doesn’t get heated during the process. The machine automatically sucks the grain or the selected product out of the dike and into the main mill during grinding.
ADVANTAGES:
- Fine, even and quality grinding,
- The grinding mass doesn’t get heated,
- Good energy efficiency,
- Easy to install,
- High capacity.
TECHNICAL SPECIFICATIONS
| Mill | MMZ - 1 | MMZ - 2 | MMZ - 3 | MMZ - 4 |
|---|---|---|---|---|
| Engine power | 5,5 kW | 7,5 kW | 9 kW | 11 kW |
| Capacity | 500 kg/h | 800 kg/h | 1000 kg/h | 1200 kg/h |

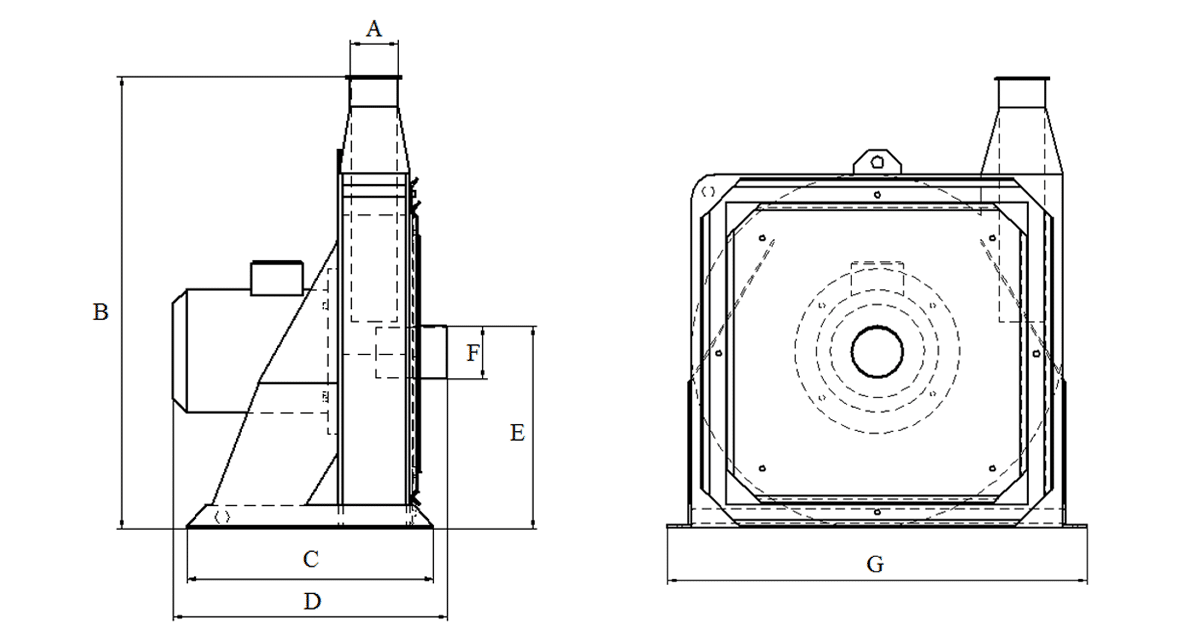

Measurements:
| Part | MMZ-2 7,5 kW |
|---|---|
| A | 100 mm |
| B | 955 mm |
| C | 520 mm |
| D | 578 mm |
| E | 428 mm |
| F | 110 mm |
| G | 890 mm |
